10  R packages: using images for custom facet labels

In this chapter, we’ll learn about how to collect data on which packages and functions are used in R code, replacing the underlying data in a plot that’s already been made, and how to use images as category labels.

Packages required in this chapter:

10.1 Data

In July 2024, TidyTuesday (R4DS Online Learning Community 2023) featured some examples of using the funspotr package (Shalloway 2023) as datasets, suggested by Bryan Shalloway. The funspotr package was designed to help identify which R functions and packages are used in files and projects. Let’s try to identify which R functions and packages have been used in this GitHub repository of TidyTuesday visualizations: github.com/nrennie/tidytuesday.

Let’s start by getting a list of all the files that exist in the GitHub repository. We can use the list_files_github_repo() function from funspotr to get this list of files - specifying which GitHub repository we want the list for (in the form of "username/repository"), and which branch of the repository we want to look at. The list_files_github_repo() function returns a data frame with two columns: relative_paths (file path relative to the root of the git repository) and absolute_paths (URL of each file).

All of the files in this repository are named and organised based on dates in the following structure: yyyy/yyyy-mm-dd/yyyymmdd.R (Rennie 2023c). Since the code to extract used functions takes a while to run, let’s filter this list of files to only include files dated 2023. We can use str_detect() from stringr to find any values in the relative_paths column that contain "2023" and then filter() from dplyr to keep only those rows.

files_to_check <- list_files_github_repo(
  repo = "nrennie/tidytuesday",
  branch = "main"
) |>
  filter(
    str_detect(relative_paths, "2023")
  )

We then pass the files_to_check data frame into spot_funs_files() from funspotr to get the list of functions and packages uses in each file. Since we want to look at total package use, we set show_each_use = TRUE to make sure that individual rows are returned each time a function is used (rather than just once for an entire file).

r_funs <- files_to_check |>
  spot_funs_files(
    show_each_use = TRUE
  )

We then use the unnest_results() function from funspotr to get a row in the data for each use of a function. Since the code above takes a while to run, it’s also important that we save the data in a format that means we can use it later (rather than having to re-download it). We’ll save it as a CSV file using write.csv(), choosing an appropriate file name and removing the row names.

r_pkgs <- rfuns |>
  unnest_results()
write.csv(r_pkgs, "data/r_pkgs.csv", row.names = FALSE)

We can then read the CSV back in using read_csv() from **readr``** (orread.csv()` if you prefer!)

r_pkgs <- read_csv("data/r_pkgs.csv")

The contents of the nrennie/tidytuesday GitHub repository have likely expanded since this chapter was written. You can download the version of the CSV file used in this chapter here.

The r_pkgs data has 4059 rows and 4 columns. The funs column contains names of each function used, and pkgs has the name of the package that function comes from. The remaining two columns are the relative_paths and absolute_paths columns that identify which file the function was found in. Let’s have a quick look at the data using head():

head(r_pkgs)
# A tibble: 6 × 4
  funs            pkgs     relative_paths     absolute_paths
  <chr>           <chr>    <chr>              <chr>
1 library         base     2023/2023-01-03/2… https://raw.g…
2 library         base     2023/2023-01-03/2… https://raw.g…
3 library         base     2023/2023-01-03/2… https://raw.g…
4 library         base     2023/2023-01-03/2… https://raw.g…
5 font_add_google sysfonts 2023/2023-01-03/2… https://raw.g…
6 font_add_google sysfonts 2023/2023-01-03/2… https://raw.g…

10.2 Exploratory work

The obvious question to start with here is: which packages are used most often?

10.2.1 Data exploration

Let’s start by counting the number of package used with the table() function, and using sort() to arrange packages from least to most used.

We can then pass this into the barplot() function to obtain an ordered bar chart of package use, setting horiz = TRUE to make a horizontal bar chart. We can see that ggplot comes out on top, closely followed by base!

Tip 10.1: Base R or tidyverse?

As an aside, this highlights that combining base R and tidyverse packages can be incredibly effective since they each have different strengths. There’s no need to choose a side on the base R versus tidyverse argument - use both!

barplot(
  sort(table(r_pkgs$pkgs)),
  las = 1,
  horiz = TRUE
)

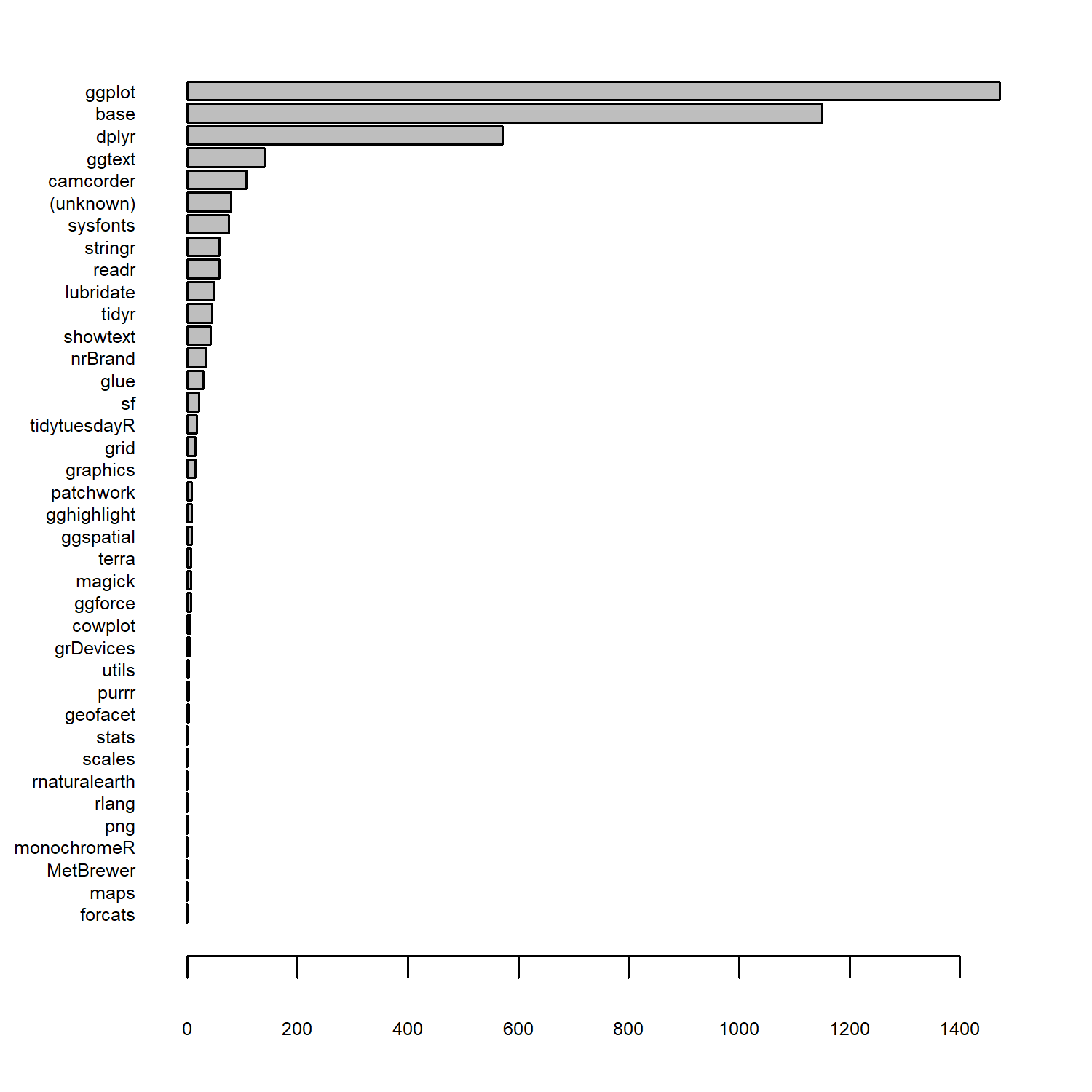

Figure 10.1: Ordered bar chart showing the number of times each package was used in 2023. The ggplot2 package is used most.

One thing that you may have noticed is that, for some reason, in the data the package is listed as "ggplot" rather than "ggplot2". So let’s fix that using mutate() and the if_else() function from dplyr. We can overwrite the existing pkgs column, where (i) if the value is currently "ggplot", we replace it with "ggplot2"; (ii) otherwise, we leave the existing value in the pkgs column.

r_pkgs <- r_pkgs |>
  mutate(
    pkgs = if_else(
      pkgs == "ggplot",
      "ggplot2",
      pkgs
    )
  )

10.2.2 Exploratory sketches

There are currently 38 packages listed in the data, many of them with one or two uses. That’s quite a lot of categories to visualize at once, so let’s narrow it down to only the core tidyverse packages (Wickham et al. 2019). We could visualise a simple bar chart (or variation of a bar chart) showing how often each core tidyverse package was used. But due to the structure of the file names, we also have information about when each package was used. So we could visualize usage over time, for each package.

For each package, we could create an area (or line) chart showing usage over time using facets as we did in Chapter 3. This time, the categories don’t really have a natural order, so instead we’ll order the facets from most to least used. It might look something like Figure 10.2.

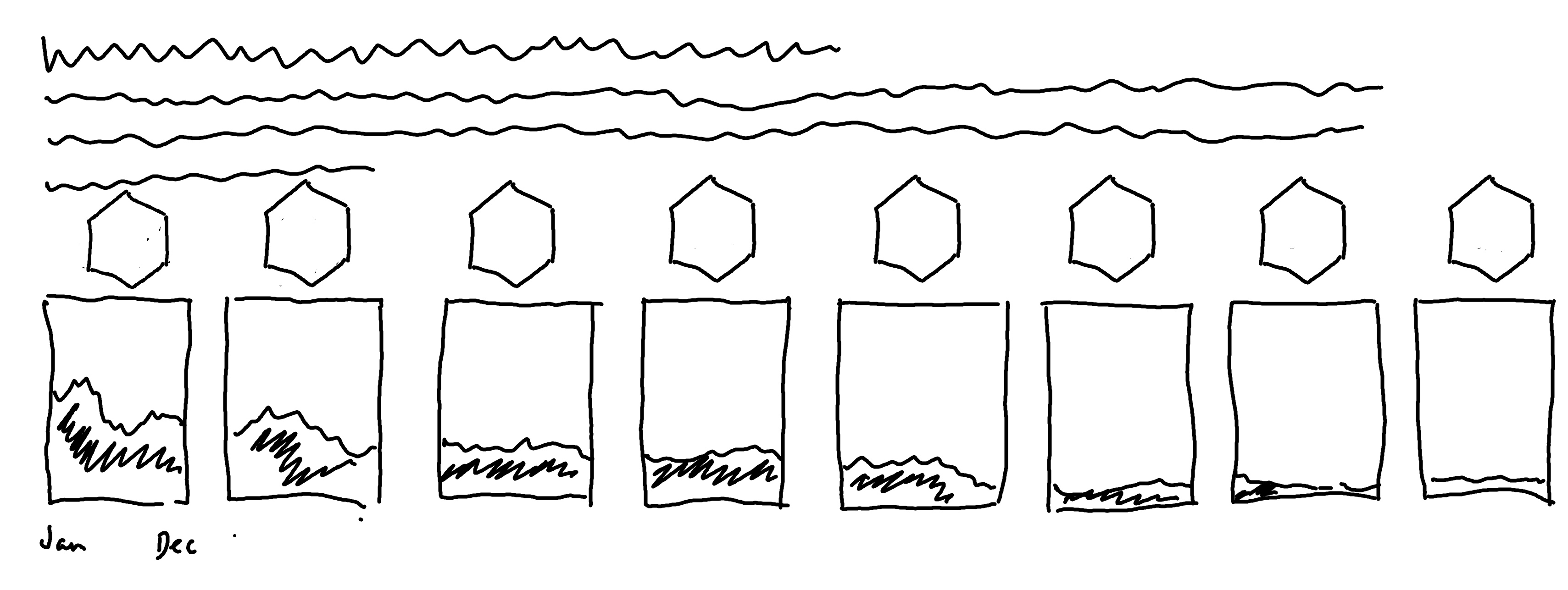

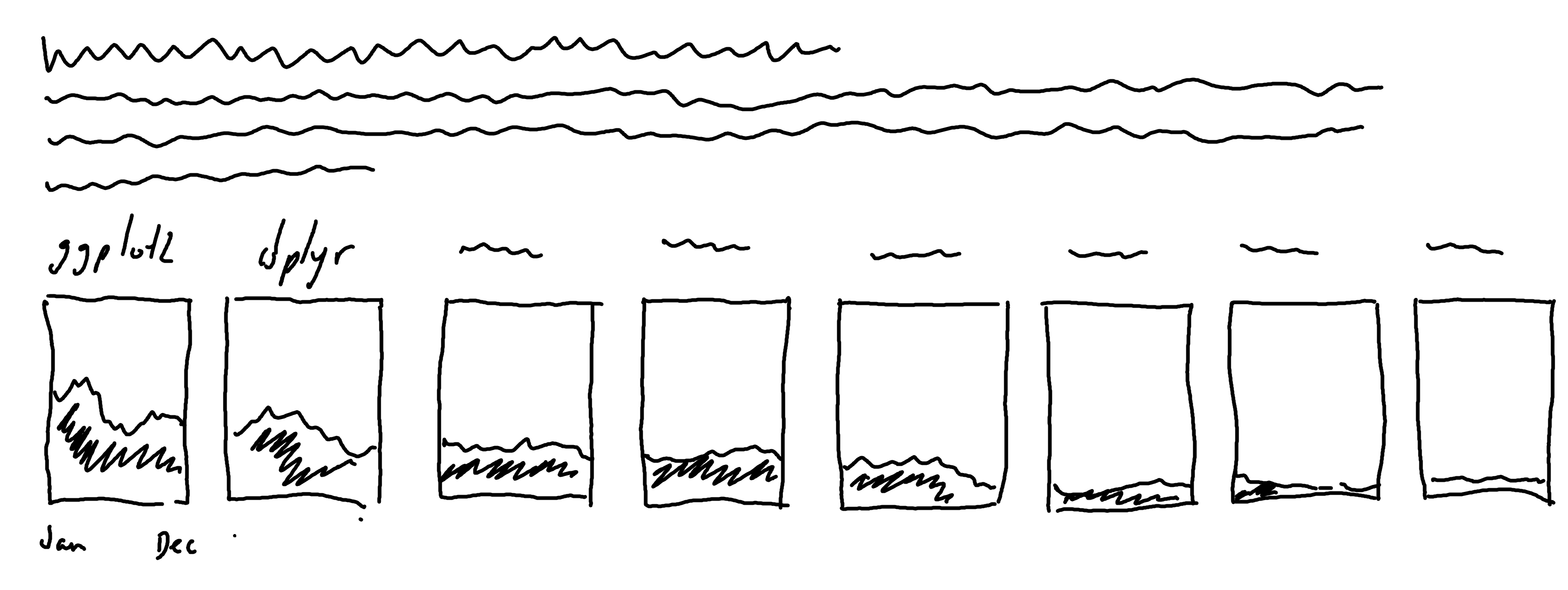

Figure 10.2: Initial sketch of a faceted area charts showing packages use over time.

One of the most incredible things about the R community, is our adoration of hex stickers - package logos in the shape of a hexagon. All of the core tidyverse packages have their own hex sticker. Rather than simply using the package name as the facet label in our plot, we could replace the labels with images of hex stickers, as shown in Figure 10.3.

Figure 10.3: Initial sketch of a faceted area charts showing packages use over time, with hex stickers instead of text labels.

10.3 Preparing a plot

To prepare an initial draft of the plot in Figure 10.2, we need to wrangle the following information from the data:

  • The date each package use relates to (currently embedded in a file name);
  • The number of package uses per day for each core tidyverse package; and
  • Which package was used the most often?

10.3.1 Data wrangling

Since we’re going to focus on the core tidyverse packages, let’s start by making a vector of the package names:

core_tidyverse <- c(
  "dplyr", "forcats", "ggplot2", "purrr",
  "readr", "stringr", "tibble", "tidyr"
)

We can then use this vector to filter() the data and keep only rows where the pkgs column has a value in the core_tidyverse vector.

The relative_paths are currently of the form "yyyy/yyyy-mm-dd/yyyymmdd.R", and we want to extract the date from this file path. There are multiple ways of doing this - the easiest way is to extract the part of the file path that is between the two /. Here, we can make use of separate_wider_delim() from tidyr. This function allows you to separate a character string in one column, into multiple columns based on some delimiter. In this case, the delimiter will be /. By default, this will create three new columns for each section of the string: yyyy, yyyy-mm-dd, and yyyymmdd.R. We only want to keep the middle one, so we can use the trick of setting the names of columns we don’t want to keep to NA. Instead, we’ll create only one new column called date.

We then convert the date which is currently still a character string into a date object using mutate() and the ymd() function from lubridate (since the dates are specified in year, month, day format). Finally, we count how many observations there are of each package, per date.

r_pkgs_date <- r_pkgs |>
  filter(pkgs %in% core_tidyverse) |>
  separate_wider_delim(
    relative_paths,
    delim = "/",
    names = c(NA, "date", NA)
  ) |>
  mutate(date = ymd(date)) |>
  count(date, pkgs)
Tip 10.2: Alternative approach using stringr

Instead of using separate_wider_delim(), you could use functions from the stringr package (Wickham 2023b), which is designed for processing character strings. For example:

library(stringr)
r_pkgs |>
  mutate(date = str_extract(
    relative_paths,
    pattern = "(?<=/)[^/]+(?=/)"
  ))

Here, we create a new date column using mutate() which consists of the part of the string in between the two /, extracted using str_extract() from stringr. The pattern is a regular expression (often shortened to regex) which is a sequence of characters that defines a search pattern.

This pattern breaks down as:

  • (?<=/): look behind for a /
  • [^/]+: match one or more characters that are not /
  • (?=/): look ahead for a /

We want the facets in our plot to be ordered from most to least used package, so let’s start by converting the pkgs column to a factor and set the levels equal to the vector of core tidyverse package names. This ensures that all core packages are included in the factor levels even if they do not appear in the data. If you look closely, you’ll notice that "tibble" is missing. It’s missing because it’s never been used directly - that’s not that surprising, since it’s often used in the background of the other tidyverse packages. Sometimes, it’s important to visualise zeroes, so it’s important that tibble is still represented in the data.

We can then use fct_reorder() from the forcats package (Wickham 2023a) to sort the pkgs column based on the sum of values in the n column. We set .desc to TRUE to sort in descending order, and set .default to -Inf to place any unused factor levels at the end i.e. where they would appear if they had a count of 0.

plot_data <- r_pkgs_date |>
  mutate(
    pkgs = factor(pkgs, levels = core_tidyverse),
    pkgs = fct_reorder(pkgs, n,
      .fun = sum,
      .desc = TRUE, .default = -Inf
    )
  )

Now we’re ready to create a first draft of Figure 10.2!

10.3.2 The first plot

We start our plot by passing plot_data into ggplot() to use this data as the base for all elements in the plot. We then add geom_area() to create the geometry for the area chart, specifying the aesthetic mapping using aes() again. We put the date on the x-axis, n on the y-axis. and set the fill color of the area chart based on the category in pkgs. This is very similar to the initial plots created in Chapter 3.

We then add facet_wrap() to create small multiple plots, split by pkgs. We want our facet plots all in one line rather than arranged as a grid, so we set nrow = 1 inside facet_wrap(). Although "tibble" is a level in our pkgs factor column, no observations of that factor level exist. To make sure it still appears as an (empty) facet, we set drop = FALSE. Otherwise, only 7 faceted plots would be shown.

basic_plot <- ggplot(plot_data) +
  geom_area(
    mapping = aes(
      x = date,
      y = n,
      fill = pkgs
    )
  ) +
  facet_wrap(~pkgs, nrow = 1, drop = FALSE)
basic_plot
Warning in min(diff(unique_loc)): no non-missing arguments
to min; returning Inf

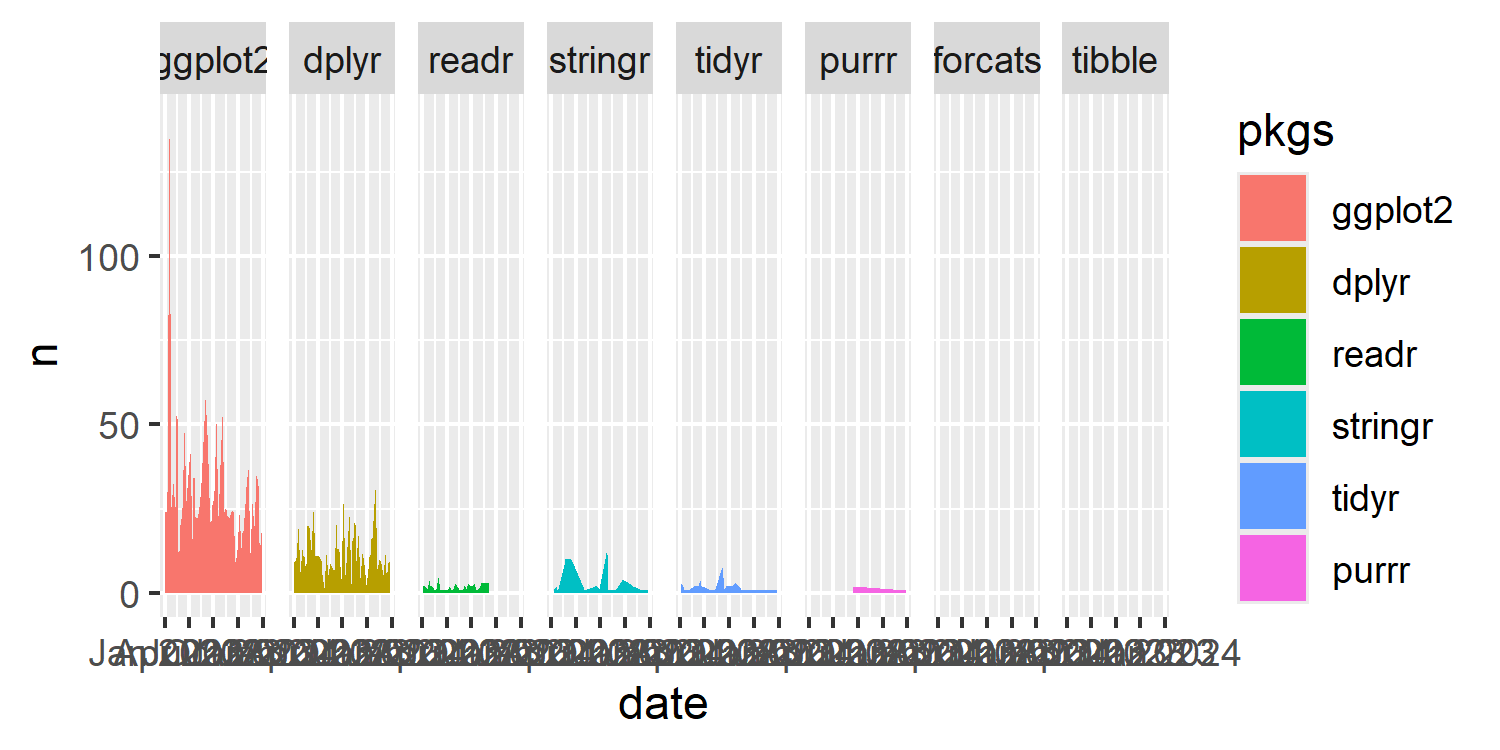

Figure 10.4: Faceted area charts showing package use over time for each of the 8 core tidyverse packages, with facets ordered from most to least use. The ordering doesn’t quite look correct.

You might notice two things here:

  • alongside the plot, a (slightly confusing) warning message is returned;
  • the ordering of the plot doesn’t look quite right.

You might also notice the large spike in the ggplot2 facet which shows 141 uses of the ggplot2 package in a single script and wonder if this is an error. It’s not an error - it was actually used that many times!

Let’s start by thinking about the second one of these issues and see if we can figure out what’s happening. We’ve specified that the facets should be ordered from most to least used in total. But the area for the stringr package looks much larger than the area for the readr``** package - even though it should be smaller. It also looks as though there are no values in the **forcats** facet - but we know this isn't true for **forcats**, only for **tibble`. Why is this happening?

The problem is that 0 is not included in the data. The areas are being drawn between only the strictly positive values, never going back down to 0. For packages that are used a lot but only in a few scripts, this makes their area larger than packages that are used once or twice in many scripts.

In our data set, if a package isn’t used in a script, there is no entry in the data. This makes sense since there are tens of thousands of packages and it would be much more difficult and time consuming to list every package that isn’t used, rather than just those that are. But in our case, these missing, unobserved values aren’t really missing values - they are 0 values.

The warning message returned from the plot is also trying to tell us about this problem (the warning just isn’t very clear!)

Tip 10.3: Don’t ignore the warning signs!

This is it a zero or is it missing? question has highlighted a few important aspects of plotting charts and data processing:

  • Don’t simply ignore warning messages if you don’t understand them. It might be tempting to ignore the warning message because you ended up with a plot that looks kind of like what you expected, and the warning message isn’t very clear about what’s wrong. But here, the warning was telling us that something was wrong with our assumptions about the data.

  • Ordering your data (sensibly) can help you to spot issues. If the facets hadn’t been ordered, it would have been harder to recognize that some areas were overestimated, and some were underestimated.

  • Sometimes missing values are explicitly represented as NA values (or something else), and other times missing values are simply rows that do not exist in the data. We often think about missing values more when we see them as NA values. But just because you have no NA values in your data, doesn’t mean that you don’t have any missing values.

  • As discussed in Chapter 4, when you have missing values (whether explicit or implicit), it’s important to think about why they are missing and whether they are really missing. Does a missing values mean 0? Or does it mean it’s actually missing? Or does it mean something else entirely? It’s important to understand the process of data collection to answer this question correctly.

Let’s go ahead and add in zeros where they should be. We know that the date and pkgs columns are complete: there are no missing values in the date column and we’ve already addressed the issue with the missing "tibble" values. We need to make sure that every possible combination of date and pkgs exists in the data: any that do not already exist should be added and given a value of 0 in the n column.

We can use the complete() function from tidyr to complete the data. We pass in the date and pkgs columns to say which combinations of columns we need to make sure exist. By default, missing combinations are represented by NA, but we can override the fill argument to use 0 instead.

new_plot_data <- plot_data |>
  complete(
    date, pkgs,
    fill = list(n = 0)
  )

Let’s take a quick look at our updated data using head() to make sure this has worked:

head(new_plot_data, n = 8)
# A tibble: 8 × 3
  date       pkgs        n
  <date>     <fct>   <int>
1 2023-01-03 ggplot2    24
2 2023-01-03 dplyr       9
3 2023-01-03 readr       2
4 2023-01-03 stringr     0
5 2023-01-03 tidyr       3
6 2023-01-03 purrr       0
7 2023-01-03 forcats     0
8 2023-01-03 tibble      0

We can see that there are now quite a few 0 values included in the n column. Notice that "tibble" is now explicitly included as well, with 0 in the n column for all observations. This is because, by default, complete() uses all levels of the factor even if they aren’t observed in the data.

Now we need to update the data that is used in our basic_plot. We could simply edit (or copy and paste) the code from above and substitute plot_data for new_plot_data. But we can alternatively use the %+% operator.

The %+% operator allows you to replace the current default data frame on an existing plot. We start with our existing basic_plot, and then use %+% to set new_plot_data as the data used in the plot.

basic_plot <- basic_plot %+% new_plot_data
basic_plot

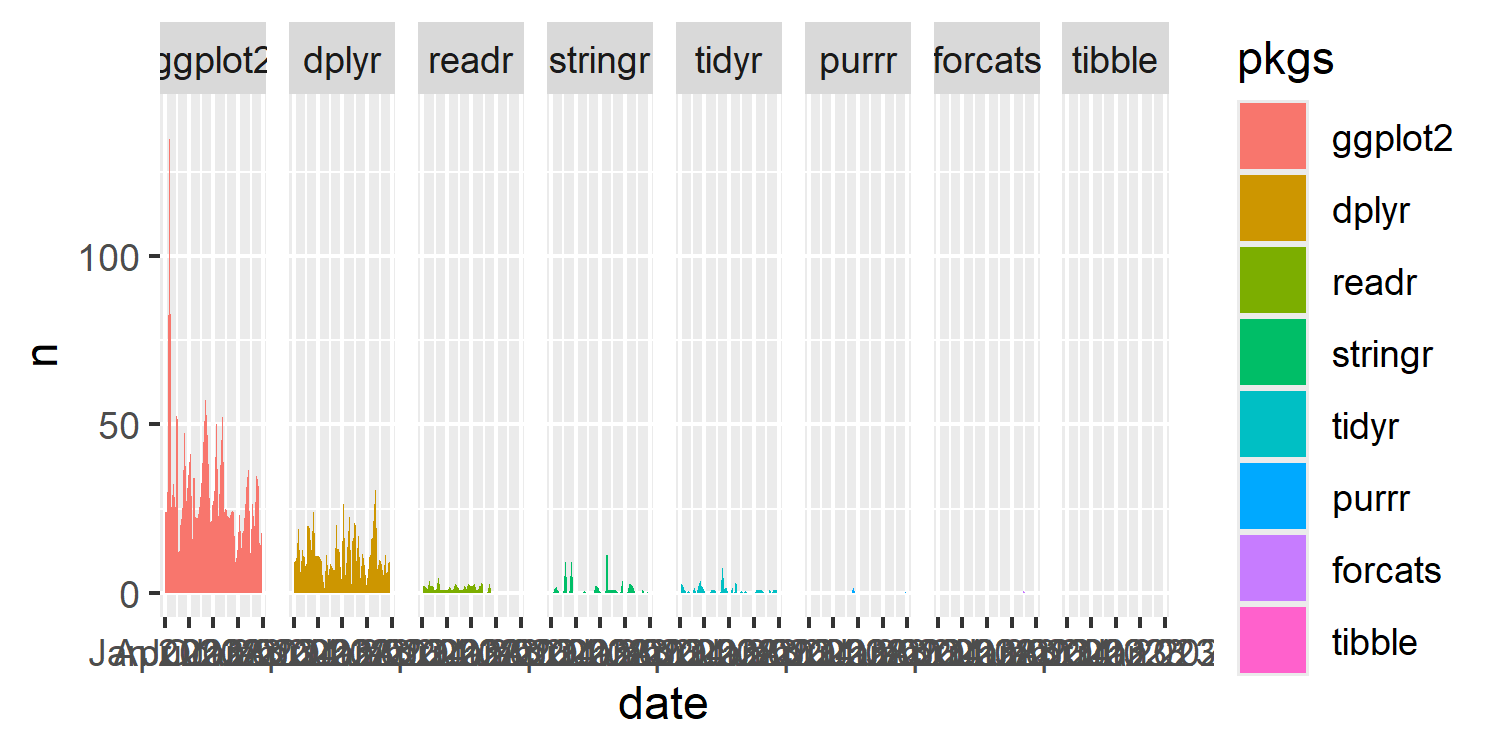

Figure 10.5: Faceted area charts showing package use over time for each of the 8 core tidyverse packages, with facets ordered from most to least use. The ordering now looks correct.

Notice that the warning message has now disappeared.

10.4 Advanced styling

Now that we have a first draft of the plot, it’s time to work on polishing it. We’ll make some adjustments to the colors, fonts, text, scales, and themes - before we move on to editing the facets labels to create a visualization like Figure 10.3.

10.4.1 Colors

Let’s go for a dark theme for our plot this time. We’ll choose a dark gray for the background color, and white for the text to ensure sufficient contrast.

bg_col <- "#3A3B3C"
text_col <- "white"

Let’s also define a color palette that we’ll use for the fill color of the area charts. As we did in Chapter 6, we’ll use one of the palettes in rcartocolor (Nowosad 2018). Again, similar to Chapter 6, to avoid the gray color, we ask for one more color than we need and then throw away the gray color. We have 8 categories in our plot, so we ask for 9 colors using the carto_pal() function and then extract only the first 8. We’ll use the "Bold" palette here.

To keep a more consistent color theme in the plot, we define our highlight color variable, highlight_col, to be the first color in our chosen color palette.

col_palette <- carto_pal(
  length(core_tidyverse) + 1, "Bold"
)[1:length(core_tidyverse)]
highlight_col <- col_palette[1]

We can then pass this col_palette vector into scale_fill_manual() function to apply the colors to our plot:

col_plot <- basic_plot +
  scale_fill_manual(
    values = col_palette
  )
col_plot

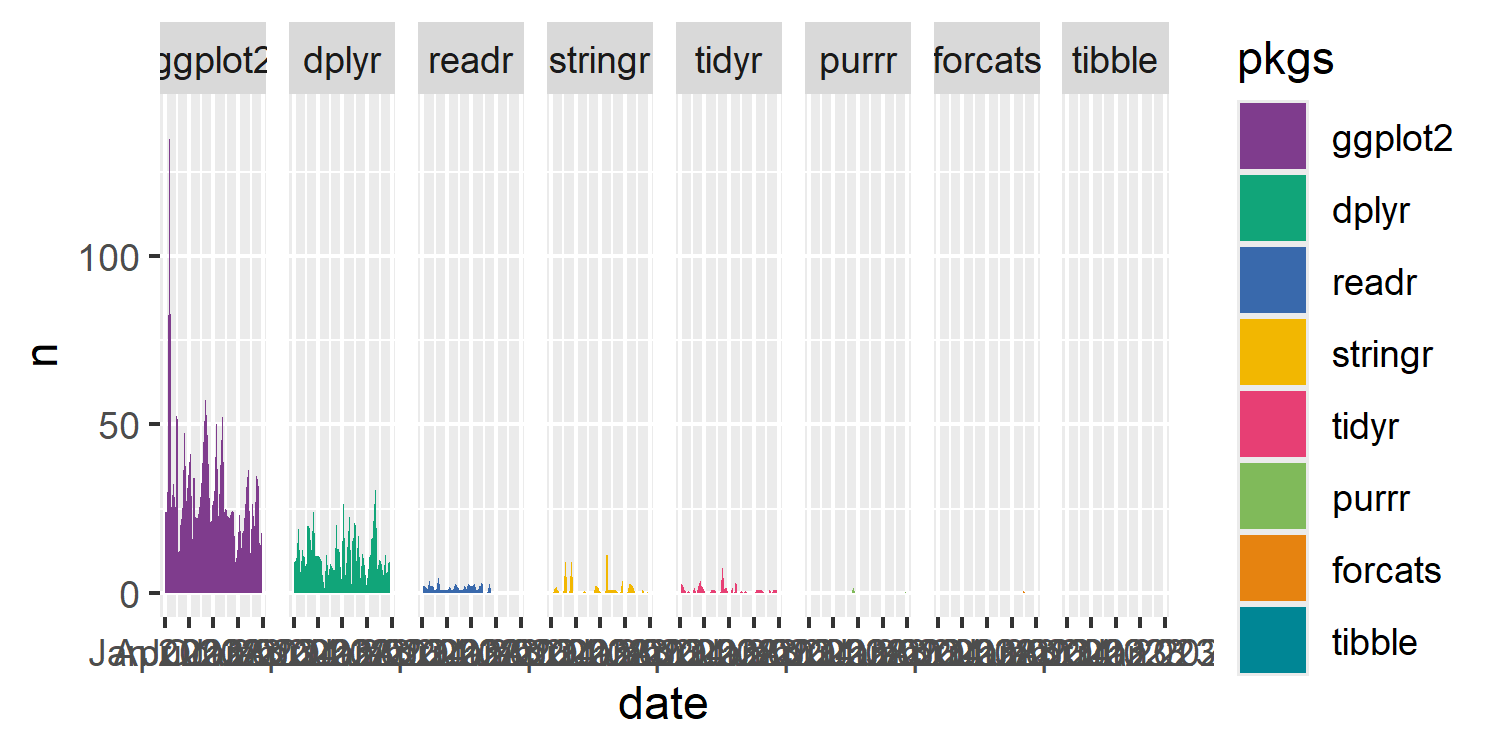

Figure 10.6: Faceted area charts showing package use over time for each of the 8 core tidyverse packages. Each area chart is colored using a different color from the rcartocolor package.

10.4.2 Text and fonts

Similar to Chapter 2, since code is the subject of the visualization, we might want to choose a typeface that’s consistent with that theme. Here we’ll use Source Code Pro, a monospace typeface originally designed specifically for coding environments. It’s loaded into R using font_add_google() from sysfonts.

In this chapter, we’ll use the same typeface for the title and body text so we only need to define one variable, body_font.

font_add_google(
  name = "Source Code Pro",
  family = "source"
)
showtext_auto()
showtext_opts(dpi = 300)
body_font <- "source"

As we’ve done in previous chapters, we’ll use the social_caption() function we defined in Chapter 7 to create a caption containing Font Awesome icons with social media handles:

social <- social_caption(
  icon_color = highlight_col,
  font_color = text_col,
  font_family = body_font
)

The subtitle includes a quote from the tidyverse website, so we’ll format it in italics using *. Package names are formatted in bold with **. We also use the source_caption() function we defined in Chapter 6 to create a caption with information about the data source, combined with the social icons to attribute the graphic.

title <- "How many times did I use **tidyverse** packages for TidyTuesday?"
st <- "The **tidyverse** is a collection of open source R packages that *share an underlying design philosophy, grammar, and data structures*. Of the 8 core **tidyverse** packages, **ggplot2** was my most used package for TidyTuesday visualizations in 2023."
source_cap <- source_caption(
  source = "github.com/nrennie/tidytuesday",
  graphic = social,
  sep = "<br>"
)

We also join together the subtitle text with the data and graphic source information using paste0() (although you could use glue() instead).

cap <- paste0(st, "<br>", source_cap)

We can then pass this text into the labs() function to apply it to our plot. We also set x = "" to remove the x-axis text, and define a more informative y-axis title.

text_plot <- col_plot +
  labs(
    title = title,
    subtitle = cap,
    x = "",
    y = "Number of package calls"
  )
Tip 10.4: Removing axis titles

There are multiple different ways to remove the axis labels. You can set x = "" as we’ve done here, or x = NULL. You can also set axis.text.x = element_blank() inside theme() to remove the text.

10.4.3 Adjusting scales and themes

We can adjust the x- and y- axes labeling to deal with the over-crowding of the labels. By default, labels have been added on each facet, at every three months. Although the data only covers 2023, ggplot2 also extends the x-axis to cover the beginning of 2024. We can adjust the limits and breaks of the x-axis scale to show only 2023, and have fewer labels. Since the values on the x-axis are dates, we use scale_x_date() to make the adjustments. This also means that the values we pass into the breaks and limits arguments of scale_x_date() should be dates, and so we again make use of ymd() from lubridate. We set the x-axis limits to be from January 1 to December 31 of 2023, and add labels on the first of January and July.

For the y-axis, we choose nice limits and breaks - setting the limits to between 0 and 150, with breaks every 50. To remove the excess space around the edge of each facet plot, we also set expand = FALSE in coord_cartesian().

limits_plot <- text_plot +
  scale_x_date(
    limits = ymd(c("20230101", "20231231")),
    breaks = ymd(c("20230101", "20230701")),
    labels = c("Jan", "Jul")
  ) +
  scale_y_continuous(
    limits = c(0, 150),
    breaks = c(0, 50, 100, 150)
  ) +
  coord_cartesian(expand = FALSE)
limits_plot

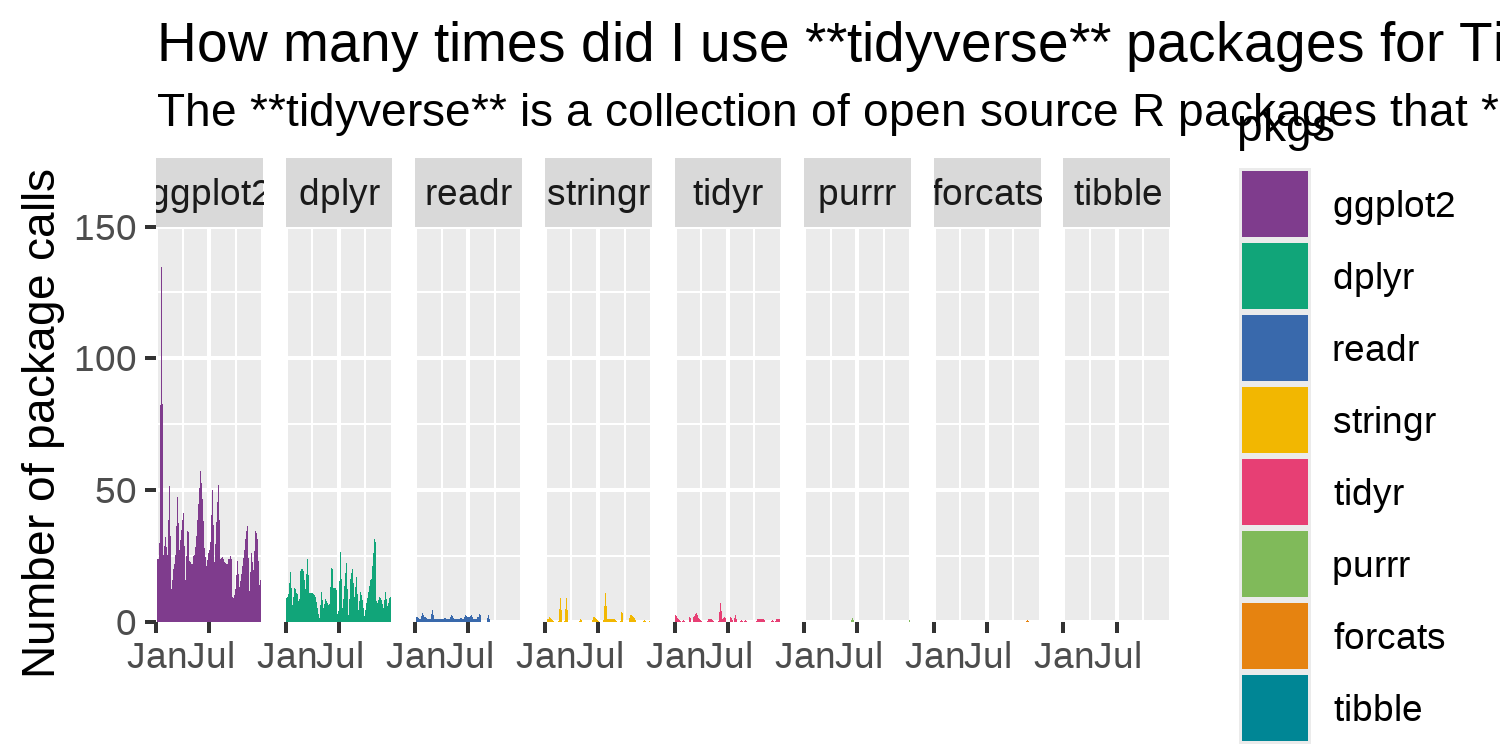

Figure 10.7: Faceted area charts showing package use over time for each of the 8 core tidyverse packages. A title and subtitle has been added but runs of the page. However, the x-axis labels no longer overlap.

Let’s edit the arguments of theme() to finalise our plot. There’s a fairly large number of adjustments to make, so we’ll do them in two stages.

We’ll start by setting the default font family and base font size in the text argument through element_text(). We also remove the legend and add a little bit of space around the edges of the plot using the margin() function.

We then edit the plot.background and panel.background to have the background color we defined earlier (as bg_col) by using the fill and color arguments in element_rect(). We also do the same for the facet label background which is controlled by the strip.background argument. Although we’re planning to replace the facet labels with images, for now we’ll format them with bold text in our preferred color. The spacing between the facets is controlled by the panel.spacing argument.

init_theme_plot <- limits_plot +
  theme(
    text = element_text(family = body_font, size = 6),
    legend.position = "none",
    plot.margin = margin(5, 10, 5, 10),
    # plot background
    plot.background = element_rect(
      fill = bg_col, color = bg_col
    ),
    panel.background = element_rect(
      fill = bg_col, color = bg_col
    ),
    # facet strip text and background
    strip.background = element_rect(
      fill = bg_col, color = bg_col
    ),
    strip.text = element_text(
      face = "bold",
      color = text_col
    ),
    panel.spacing = unit(0.5, "lines")
  )

Our final adjustments include specifying that we’re using ggtext for the title and subtitle to allow the HTML and Markdown text to be processed correctly. We do this by using element_textbox_simple() from ggtext in the plot.title and plot.subtitle arguments, where we also set the font color, left-align it, and add a little padding around the edges. The title text is made slightly larger than normal by using the rel() function in size. Setting plot.title.position = "plot" means that the title and subtitle text is aligned with the edge of the whole plot, rather than the edge of the first facet plot. This gives a cleaner looker and avoids extra white created due to the width of the y-axis text.

We also make sure that the x- and y-axes labels and title are the correct color using element_text(). Finally, the grid lines are made thinner and semi-transparent using the color and linewidth arguments in element_line(). The minor grid lines are made a little bit more transparent than the major grid lines.

theme_plot <- init_theme_plot +
  theme(
    # title and subtitle text
    plot.title.position = "plot",
    plot.title = element_textbox_simple(
      color = text_col,
      hjust = 0,
      halign = 0,
      margin = margin(b = 5, t = 5),
      face = "bold",
      size = rel(1.4)
    ),
    plot.subtitle = element_textbox_simple(
      color = text_col,
      hjust = 0,
      halign = 0,
      margin = margin(b = 5, t = 0)
    ),
    # axes styling and grid lines
    axis.text = element_text(
      color = text_col
    ),
    axis.title = element_text(
      color = text_col
    ),
    axis.ticks = element_blank(),
    panel.grid.major = element_line(
      color = alpha(text_col, 0.3),
      linewidth = 0.2
    ),
    panel.grid.minor = element_line(
      color = alpha(text_col, 0.1),
      linewidth = 0.2
    )
  )
theme_plot

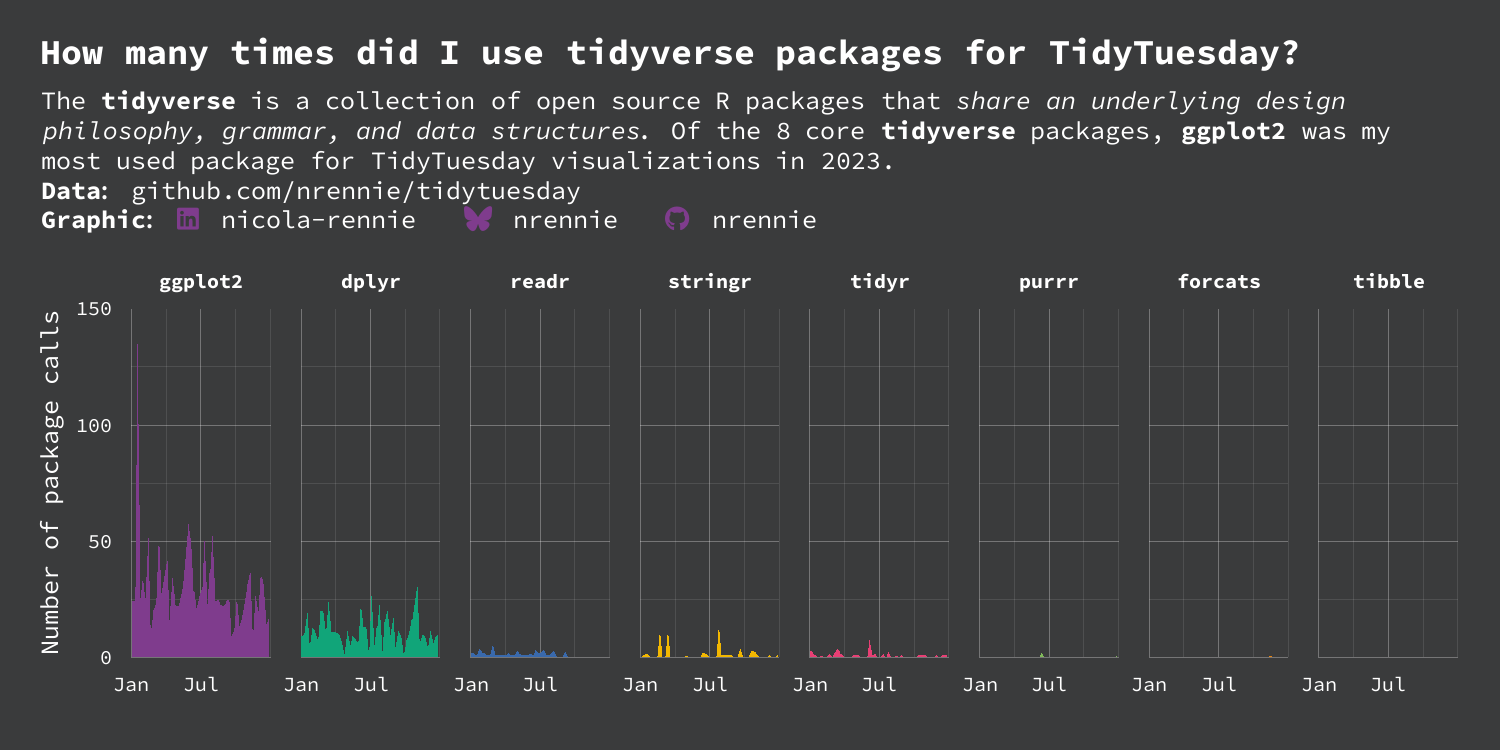

Figure 10.8: Faceted area charts showing package use over time for each of the 8 core tidyverse packages. The plot has a dark background, and white text (which no longer exceeds the plot area).

This visualization is perfectly fine as it is, but we can still edit the facet labels to use hex stickers instead of text labels, as we proposed in Figure 10.3.

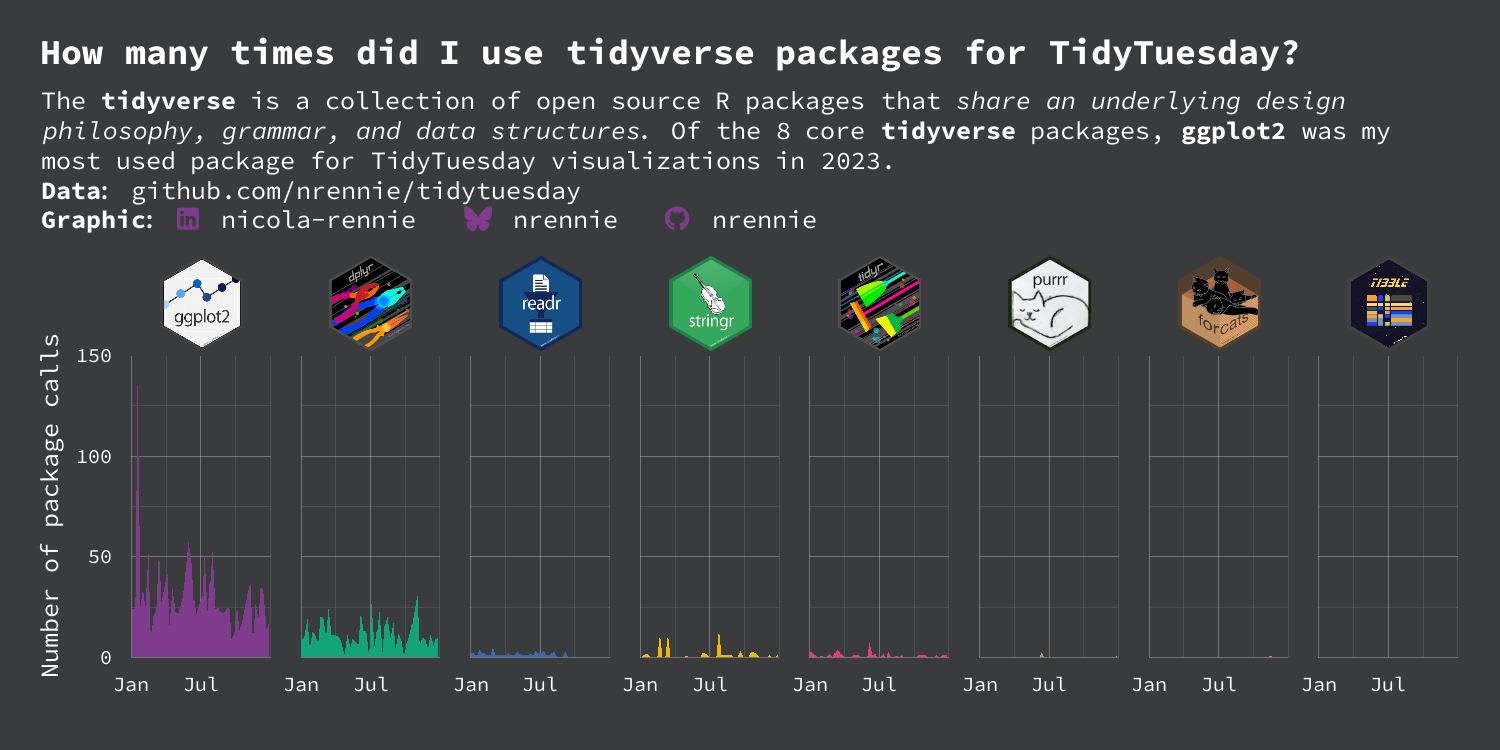

10.4.4 Using images as facet labels

As we discussed in Chapter 9, packages such as cowplot (C. O. Wilke 2024), egg (Auguie 2019), patchwork (Pedersen 2024), and ggimage (Yu 2023) can all be used to plot images. Here, we want to use images for the facet labels, which lie outside of the plot panel. There are several good options for overlaying elements outside of the main plot area. The inset_element() function from patchwork can add elements on top of existing plots (we’ll see an example in Chapter 12). Similarly,the draw_image() function from cowplot simplifies the process of combining plots and images. However, to edit the facet labels we don’t actually need any additional packages beyond the ones we’ve already used to make the plot.

We’ve used the ggtext package (C. O. Wilke and Wiernik 2022) many times already to add styling through the use of both Markdown and HTML syntax. For example, we added lines breaks using <br> and colored text using <span></span>. The <img> tag is used to add images in HTML. So let’s use that in combination with ggtext to format the facet labels!

Before we get started, we need to get some images! The hex stickers for many R packages can be found at github.com/rstudio/hex-stickers. For each of the 8 packages included in the plot, we can download the relevant hex sticker and save it somewhere sensible. Here, we’ll save each image as a PNG file and the name of the file is the same as the name of the package e.g. the hex sticker for dplyr is saved as dplyr.png (RStudio 2020a). To keep our directories looking clean and tidy, we might choose to save them in a folder. Here, we’ll save them in a nested folder: images/hex/. This means the (relative) file path for our dplyr hex sticker is images/hex/dplyr.png. This is what we want to pass in as the image source in the <img> HTML tag for the dplyr facet label.

This means we need to make two edits to our data:

  • including <img> tags in the pkgs column that is used as the faceting variable.
  • including <img> tags in the factor levels of the pkgs column to keep the correct ordering.

Let’s start with the factor levels. Currently, the factor levels are just the package names. Luckily, we’ve been smart enough to save the images with the package name as the file name. This means we can use glue() from the glue package to stick together the package names with the HTML code.

Let’s first extract the factor levels of the pkgs column, and save it as a variable called pkgs_levels. We then append these names to the end of the image file path, to create a new vector for the factor levels:

pkgs_levels <- levels(new_plot_data$pkgs)
new_levels <- glue(
  "<img src='images/hex/{pkgs_levels}.png'>"
)

We can also control how the images appear within the <img> tag (to some extent). For example, we can set the width of the image (this will take a little bit of trial and error!). Unfortunately, the hjust and halign arguments don’t seem to fully center the image within the facet label area. Instead, we can use a slightly hacky solution and add some blank space to the left hand side. In HTML, &nbsp; can be used to add a (non-breaking) space. Again, a little bit of trial and error is needed to figure out how many spaces we need to add.

new_levels <- glue(
  "&nbsp;&nbsp;&nbsp;&nbsp;<img src='images/hex/{pkgs_levels}.png' width='20'>"
)

Now we need to do the same thing to the pkgs column. It’s important that we overwrite the pkgs column here rather than making an entirely new column. This means that we can use the %+% operator to update the data and ggplot2 will still be able to find the correct variable to facet by. We again use glue() to add the pkgs column into HTML <img> tags - being very careful to make sure that the new column values match exactly to the factor levels we defined in new_levels. This allows us to then apply these factor levels using mutate() to make sure the ordering of the packages from most to least used in retained.

plot_img_data <- new_plot_data |>
  mutate(
    pkgs = glue("&nbsp;&nbsp;&nbsp;&nbsp;<img src='images/hex/{pkgs}.png' width='20'>")
  ) |>
  mutate(
    pkgs = factor(pkgs, levels = new_levels)
  )

As we did earlier, let’s update the data to use our new plot_img_data using the %+% operator:

img_plot <- theme_plot %+% plot_img_data

We also need to tell ggplot2 that the facet labels are using HTML tags, just as we’ve done with the caption. We edit the theme() function further and update the styling for strip.text.x. We again use element_textbox_simple() from ggtext, and set hjust and halign both to 0.5.

img_plot +
  theme(
    strip.text.x = element_textbox_simple(
      hjust = 0.5,
      halign = 0.5
    )
  )
Figure 10.9: Faceted area charts showing package use over time for each of the 8 core tidyverse packages. Hex stickers have replaced the text labels on the facets.

Lastly, use ggsave() to save a copy as a PNG file:

ggsave(
  filename = "r-packages.png",
  width = 5,
  height = 2.5
)
Tip 10.5: Facet label images using marquee

You can do a very similar thing using the marquee package (Pedersen and Mitáš 2024) instead of ggtext. The images can be added to pkgs using standard Markdown syntax instead of HTML tags:

plot_img_data <- new_plot_data |>
  mutate(
    pkgs = glue("![](images/hex/{pkgs}.png)")
  )

Remember that you’d also need to update the factor levels and the data used in the plot. You’d then adjust the theme to use element_marquee() to process the Markdown syntax:

library(marquee)
img_plot +
  theme(
    strip.text.x = element_marquee(
      hjust = 0.5,
      width = 1
    )
  )

However, controlling the sizing and placement of the images is (at the time of writing) a little bit more difficult with marquee.

10.5 Reflection

Overall, this plot is very effective - it clearly shows the differing levels of R package use whilst still being eye-catching. However, there are still a few improvements that can be made. Other than for ggplot2 and dplyr, it’s quite hard to read the values as they are very small compared to the height of the y-axis. This is due to the high usage of ggplot2 on a single occasion. Maybe using a logarithmic transformation of the y-axis would make it easier to see the very small values - although log transformations do have their own downsides in terms of interpretability.

The use of color could also be improved here. The colors are used to differentiate the different packages, and so don’t provide any further information not already given by the facet labels - similar to Chapter 3. A single color for all area plots would provide the same amount of information, but look a little bit less distracting. If we did still want to use different colors, we may consider matching them more closely to the colors in the hex sticker images. For example, the green in the stringr hex sticker image is quite similar to the green used in the dplyr area chart - this is currently a little bit distracting.

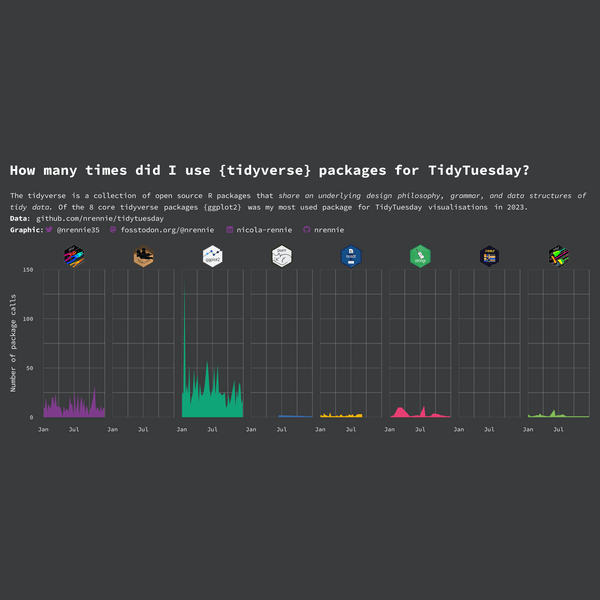

Each plot created during the process of developing the original version of this visualization was captured using camcorder, and is shown in the gif below. If you’d like to learn more about how camcorder can be used in the data visualization process, see Section 14.1.

10.6 Exercises

In July 2024, TidyTuesday used the funspotr package to look at how David Robinson has explored TidyTuesday data in his YouTube screencasts. You can load the data with:

library(tidytuesdayR)
tuesdata <- tt_load("2024-07-09")
drob_funs <- tuesdata$drob_funs
  • Recreate the visualization from this chapter for this new dataset. Are the patterns similar?

  • Choose a more appropriate color scheme for the area charts.
